When fitting out a new office, retail shop, restaurant, or clinic in Petaling Jaya and the Klang Valley, one of the first decisions you face is what type of air conditioning system to install. For most commercial spaces, the choice comes down to two options: ceiling cassette units or wall-mounted split units. Both have their strengths and limitations, and choosing the wrong one can mean poor cooling performance, wasted money, or a system that does not suit your space at all.
This article provides an honest, side-by-side comparison based on our extensive experience installing and maintaining both types of systems across commercial properties in PJ, Subang Jaya, Shah Alam, and the wider Klang Valley.
Ceiling Cassette Aircond: Overview

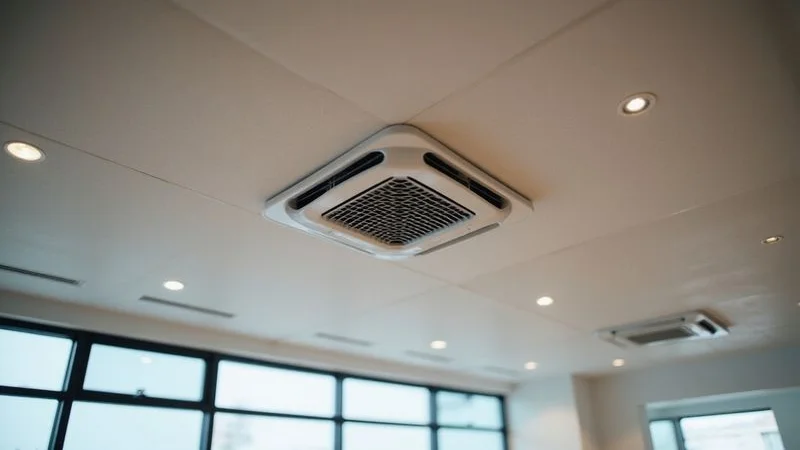

A ceiling cassette unit is installed within a false ceiling (also called a suspended or drop ceiling), with only the front panel visible from below. The unit draws warm air in through the centre of the panel and blows cooled air out through four-directional louvres around the edges. This creates an even distribution of cool air across the room.
Typical capacities: 2.0 HP to 5.0 HP (and higher for VRF systems)
Common brands in Malaysia: Daikin, Panasonic, York, Acson, Mitsubishi Electric
Price range: RM 3,500 to RM 8,000 per unit (excluding installation)
Installation cost: RM 800 to RM 2,000 per unit (depends on piping distance and ceiling access)
Wall-Mounted Split Aircond: Overview
A wall-mounted split unit is the most common type of aircond in Malaysia, used in both residential and commercial settings. The indoor unit is mounted high on a wall and blows cooled air in a single direction (forward, with adjustable up-down louvres). A separate outdoor unit houses the compressor and condenser.
Typical capacities: 1.0 HP to 2.5 HP
Common brands in Malaysia: Daikin, Panasonic, Midea, York, Acson
Price range: RM 1,200 to RM 3,500 per unit (excluding installation)
Installation cost: RM 300 to RM 800 per unit
Head-to-Head Comparison
Cooling Distribution
Ceiling cassette wins. The four-way airflow from a ceiling cassette distributes cool air evenly across the entire room. This eliminates hot spots and cold zones, which is especially important in open-plan offices, restaurants, and retail spaces where customers and employees are spread across a large area.
Wall-mounted units blow air in a single direction, creating a strong blast of cold air near the unit and progressively weaker cooling further away. In a large commercial space, this means the people sitting directly under the unit might be freezing while those at the far end of the room are still warm.
Aesthetics and Space Usage
Ceiling cassette wins. Because the unit is recessed into the ceiling, only the flush front panel is visible. This gives a clean, professional appearance that many commercial fit-outs prefer. It also frees up wall space for shelving, artwork, signage, or windows.
Wall-mounted units are visible and can look out of place in high-end commercial environments like medical clinics, law offices, or upscale restaurants. However, for budget-conscious setups like small retail shops or co-working spaces, wall-mounted units are perfectly acceptable.
Installation Requirements
Wall-mounted wins. Wall-mounted units can be installed in virtually any room with an external wall for piping. They do not require a false ceiling, making them suitable for spaces with exposed concrete ceilings, limited ceiling height, or older buildings without suspended ceilings.
Ceiling cassette units require a false ceiling with adequate clearance (typically 300mm or more above the panel). If your commercial space does not have a false ceiling, you will need to budget for ceiling works before the aircond can be installed, which adds significant cost.
Installation and Equipment Cost
Wall-mounted wins by a wide margin. For a 2.0 HP unit, the total cost (equipment plus installation) for a wall-mounted system is approximately RM 2,000 to RM 4,000. The same capacity ceiling cassette system will cost RM 4,500 to RM 9,000 or more.
For small businesses just starting out in PJ or the Klang Valley, this price difference can be the deciding factor. A typical 800 square foot office might need two 2.0 HP units — the savings from choosing wall-mounted over ceiling cassette could be RM 5,000 to RM 10,000.
Maintenance Access and Cost
Wall-mounted wins slightly. Wall-mounted units are easier and cheaper to maintain because the technician has direct access to the filters, coils, and drain pan from below. Chemical cleaning a wall-mounted unit typically costs RM 80 to RM 120.
Ceiling cassette maintenance requires the technician to access the unit from above the false ceiling, which can be more time-consuming. Chemical cleaning a ceiling cassette unit typically costs RM 120 to RM 180. The drain pump (some ceiling cassettes use a condensate pump) also requires periodic maintenance, adding another component that can fail.
Noise Level
Ceiling cassette wins slightly. Because ceiling cassette units are enclosed within the ceiling void, they tend to be slightly quieter in the occupied space below. The ceiling material provides some sound insulation.
Wall-mounted units produce their noise directly into the room. While modern inverter models from brands like Daikin and Panasonic are impressively quiet (as low as 19 dB), the noise is still more perceptible compared to a well-installed ceiling cassette.
Capacity Range
Ceiling cassette wins for larger spaces. Ceiling cassette units are available in capacities from 2.0 HP up to 5.0 HP and beyond (in VRF configurations). Wall-mounted units are generally limited to a maximum of 2.5 HP.
For large open-plan offices, banquet halls, or retail showrooms, ceiling cassettes are the only practical wall-free option. Alternatively, you could install multiple wall-mounted units, but this means more outdoor units, more piping runs, and a more cluttered appearance.
Which Is Right for Your Commercial Space?
Choose Ceiling Cassette If:
- Your space has an existing false ceiling with adequate clearance
- You need even cooling across a large open area (200+ sq ft per zone)
- Aesthetics are important for your business image
- You want to keep walls free for functional or decorative purposes
- Your space requires 2.5 HP or more per zone
Choose Wall-Mounted If:
- You are working with a limited budget
- Your space does not have a false ceiling and you do not want to install one
- Individual rooms or enclosed offices need separate temperature control
- The space is relatively small (under 350 sq ft per room)
- You need a quick installation with minimal renovation disruption
Consider a Combination
Many commercial fit-outs in the Klang Valley use a combination of both types. For example, a medical clinic might use ceiling cassettes in the waiting area and consultation rooms (for a clean, professional look) and wall-mounted units in the staff room and storage areas (to save cost where aesthetics matter less).
Our Advice for PJ and Klang Valley Businesses
At PJ Kool Aircond Service, we have installed hundreds of commercial aircond systems across every type of business premises. Our honest advice: do not let a salesperson push you toward the most expensive option without understanding your specific needs.
If you are setting up or renovating a commercial space, we offer free site assessments where we evaluate your room layout, ceiling type, occupancy patterns, and budget to recommend the best solution. We install and service both ceiling cassette and wall-mounted systems from all major brands. Contact us for a no-obligation consultation.
Keep your commercial units running efficiently with our commercial aircond maintenance service — including specialist ceiling cassette chemical wash for cassette-type units.
